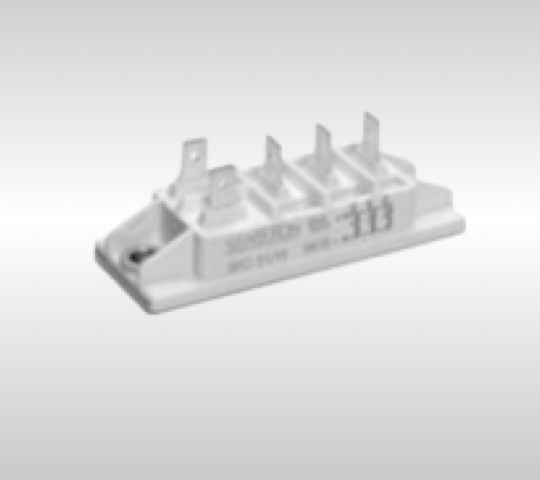

Rectifier Bridges

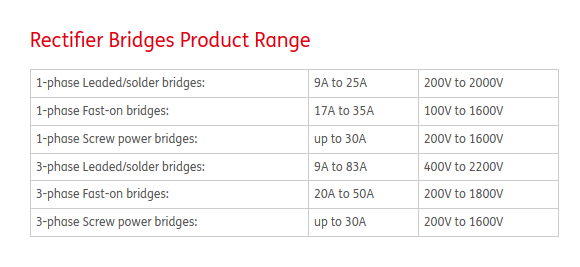

Single- and 3-phase isolated rectifier bridges for low to lower medium power applications. Standard and special topologies are available in various case and terminal designs. For voltages ranging from 200V to 2200V and currents ranging from 9A to 83A.

Rectifier Bridges Benefits

When performance, space and fast production are paramount, Semikron Danfoss rectifier bridges are the solution in many applications.

Single- or 3-phase topologies are available in isolated, compact cases. Whether your preference is solder-based connection, screw connections, fast-on connectors or busbars, Semikron Danfoss has the right product for you.

Rectifier Bridges Key Features

• Recommended for forced and natural air cooling
• Easy mounting with or without heatsink
• Insulated case
• High surge current
• Fast-on, screw or solder terminals

Rectifier Bridges Applications

Key applications include battery chargers, small motor drive input rectifiers, power supplies and rectifiers for DC motor field control for natural convection or forced cooling.
